Dear Sirs

Thank you for your inquiry.

Firstly, I appreciate your patience in awaiting a response.
While I was able to find information on the output wires of Gibson pickups,
I couldn't locate the connecting cables, making it challenging to provide precise details.
However, I can offer information tailored to our Rosewell pickup's bridge pickup product.

The basic color codes for our Rosewell Humbucker pickup are as follows:


Green wire: Basic output
Black wire: Ground connection
White and red wires: First wires for each coil

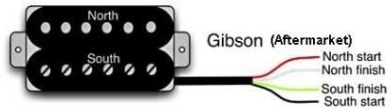

For Gibson pickups, the basic output wires are yet to be confirmed.
However, it has been verified that the red and black wires correspond to the first wires of each coil.



Based on this, you can attempt wiring our Rosewell pickup output wires according to the attached diagram.

If you have any further inquiries or require additional assistance, please feel free to let us know at any time.
Thank you again for reaching out.

Best regards,
poul – Production manager

Roswell Pickups
